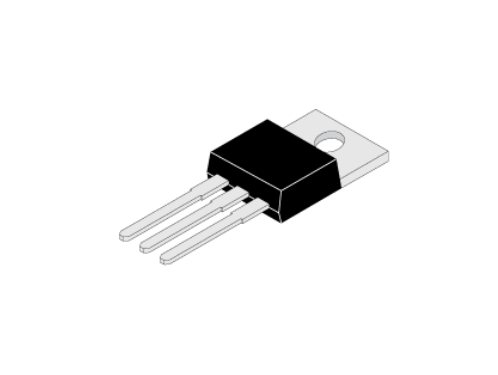

LM7812 7812 IC 12V Voltage Regulator IC
LM7812 7812 IC 12V Voltage Regulator IC
Regular price
Rs. 15.00
Regular price
Rs. 18.00
Sale price
Rs. 15.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
The L78 series of three-terminal positive regulators is available in TO-220, These regulators can provide local on-card regulation, eliminating the distribution problems associated with single-point regulation. Each type embeds internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1 A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltage and currents.
Features:
- LM7812 is a positive voltage regulator that outputs +12 volts
- The LM7812 is a three-pin IC
- Output Current up to 1.5A
- Thermal Overload Protection
- Short Circuit Protection
- Available in TO-220 package
- Thermal Resistance Junction-Cases (TO-220): °C/W
- Thermal Resistance Junction-Air (TO-220): °C/W
- Operating Temperature Range: -40° - 125° C
Block Diagram
 |
 |
Specifications
| Product Type | Linear Voltage Regulator |
| Number of Outputs | 1 |
| Input Voltage Range | 14V to 30V |
| Maximum Output Current | 1.5A |
| Operating Temperature | 0°C to 125°C |
| Package | TO-220 |
| Output Voltage | 12V |
| Country of Origin | China |
