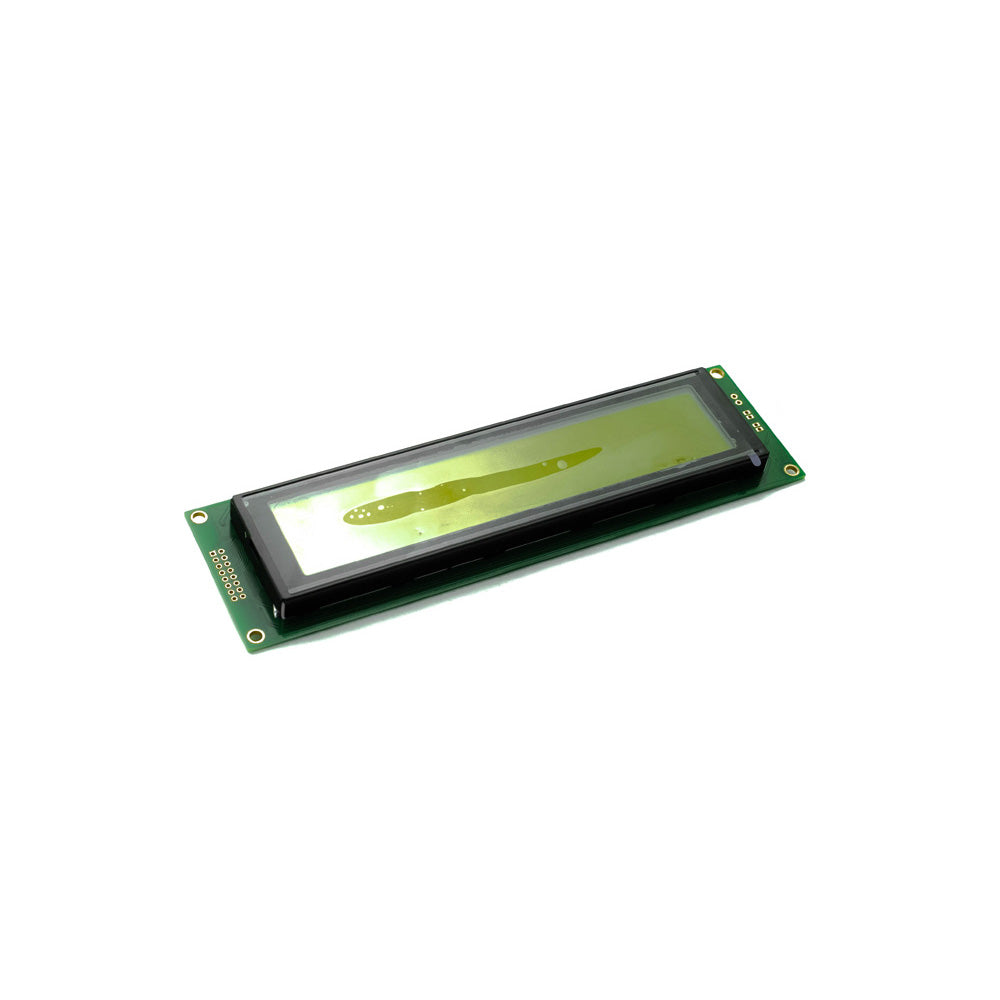

40x4 LCD Screen with Green Yellow Backlight

Product Title: 40x4 LCD Screen with Green Yellow Backlight

Product URL: https://www.electratraders.com/products/40x4-lcd-screen-with-green-yellow-backlight

Description:

Looking for a high-quality LCD screen that can display a large amount of information? Look no further than this 40x4 LCD screen with a 147x29.5mm viewing area. Its transflective display allows for easy reading in any lighting condition, whether it's direct sunlight or a dark environment. Plus, with a parallel interface and compatibility with the industry-standard Hitachi HD44780 controller, this LCD screen is easy to integrate into your device. Made in China, this LCD screen is built to last and can operate in temperatures ranging from -20°C to 70°C. Don't settle for a standard character display, choose the unique and versatile 40x4 LCD screen with green yellow backlight.

Specification:

1. PCB Size: 190x54mm
2. Height: 13.5mm
3. Viewing Area: 147x29.5mm
4. Construction: 5x8 Dots
5. Display Construction: 40 Characters x 4 Lines
6. Operating Temperature: -20°C to 70°C
7. Viewing Angle: 180°
8. Number of Pins: 16
9. Driving Method: 1/16 Duty, 1/5 Bias
10. Number of Data Line: 4/8 Bit Parallel
11. Country of Origin: China
